Breedon Hope Cement Works
Project Overview
CLIENT :
Breedon
END USER :
Breedon Hope Cement Works
APPLICATION :
MRD Workshop
SCOPE OF SUPPLY :

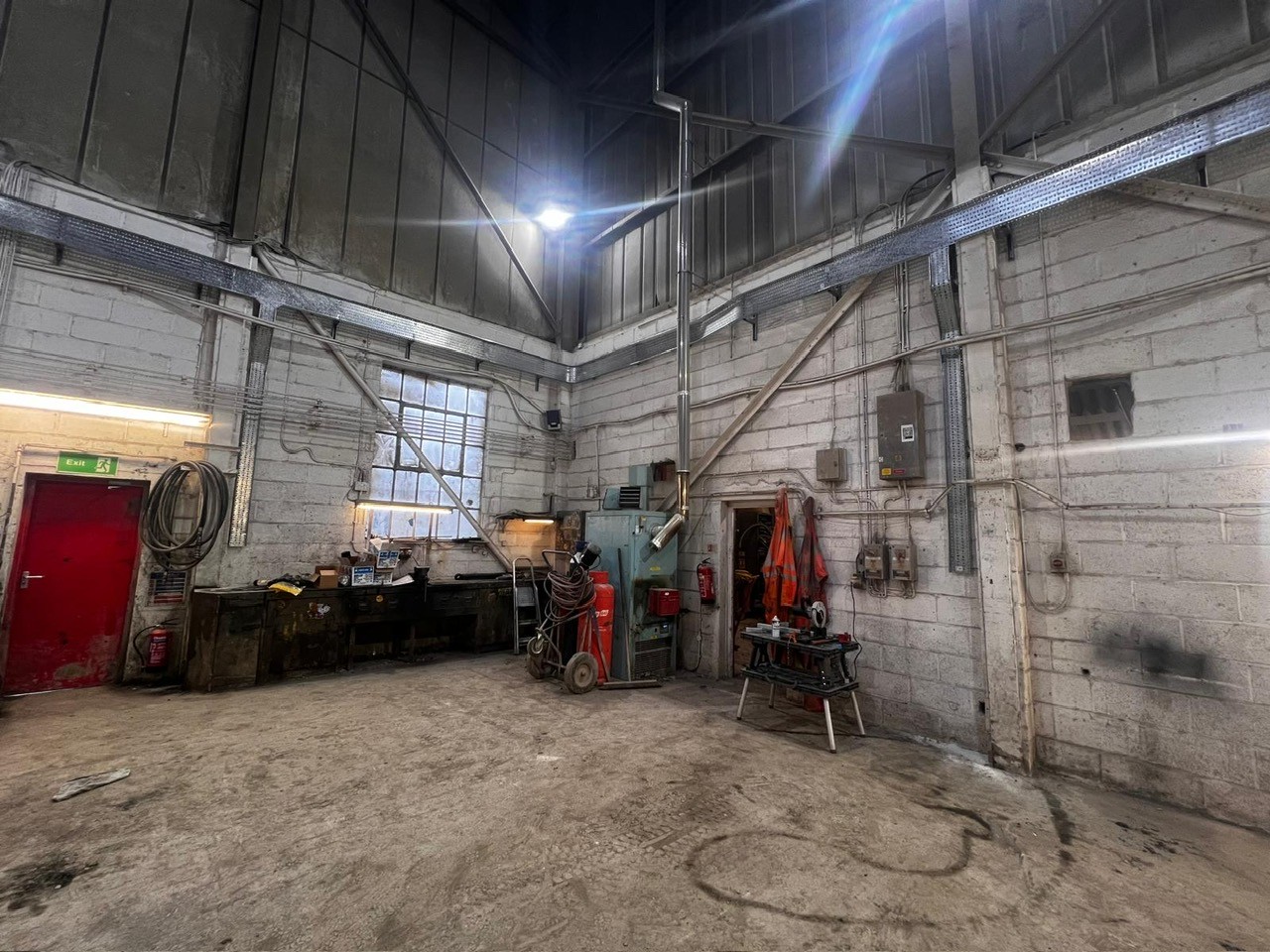

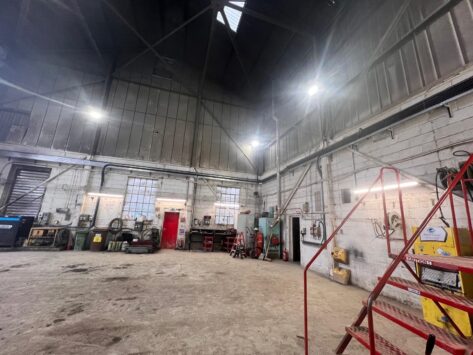

- Walk-around with the client to confirm locations for all new equipment, containment routes, and access requirements across the MRD building

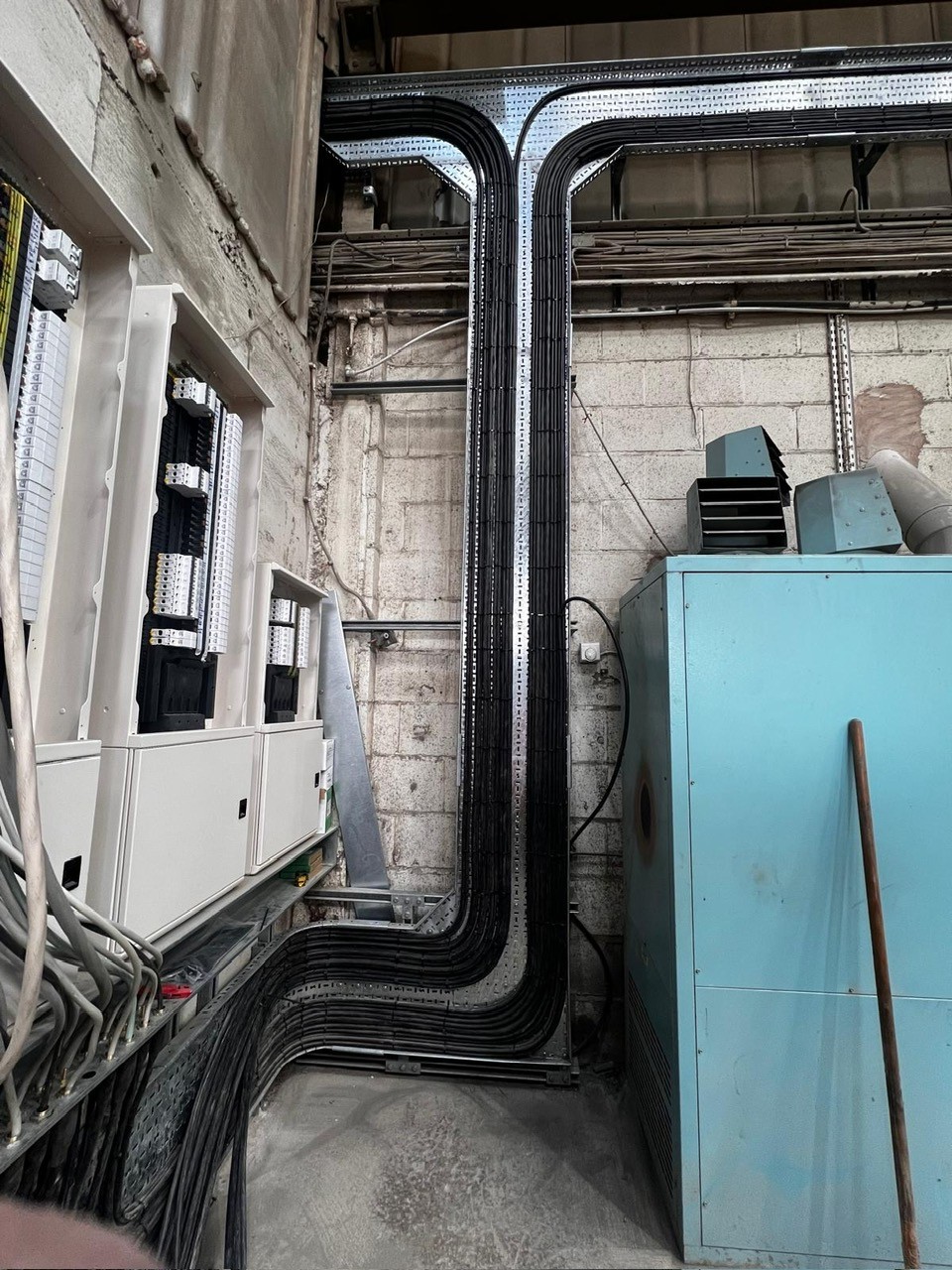

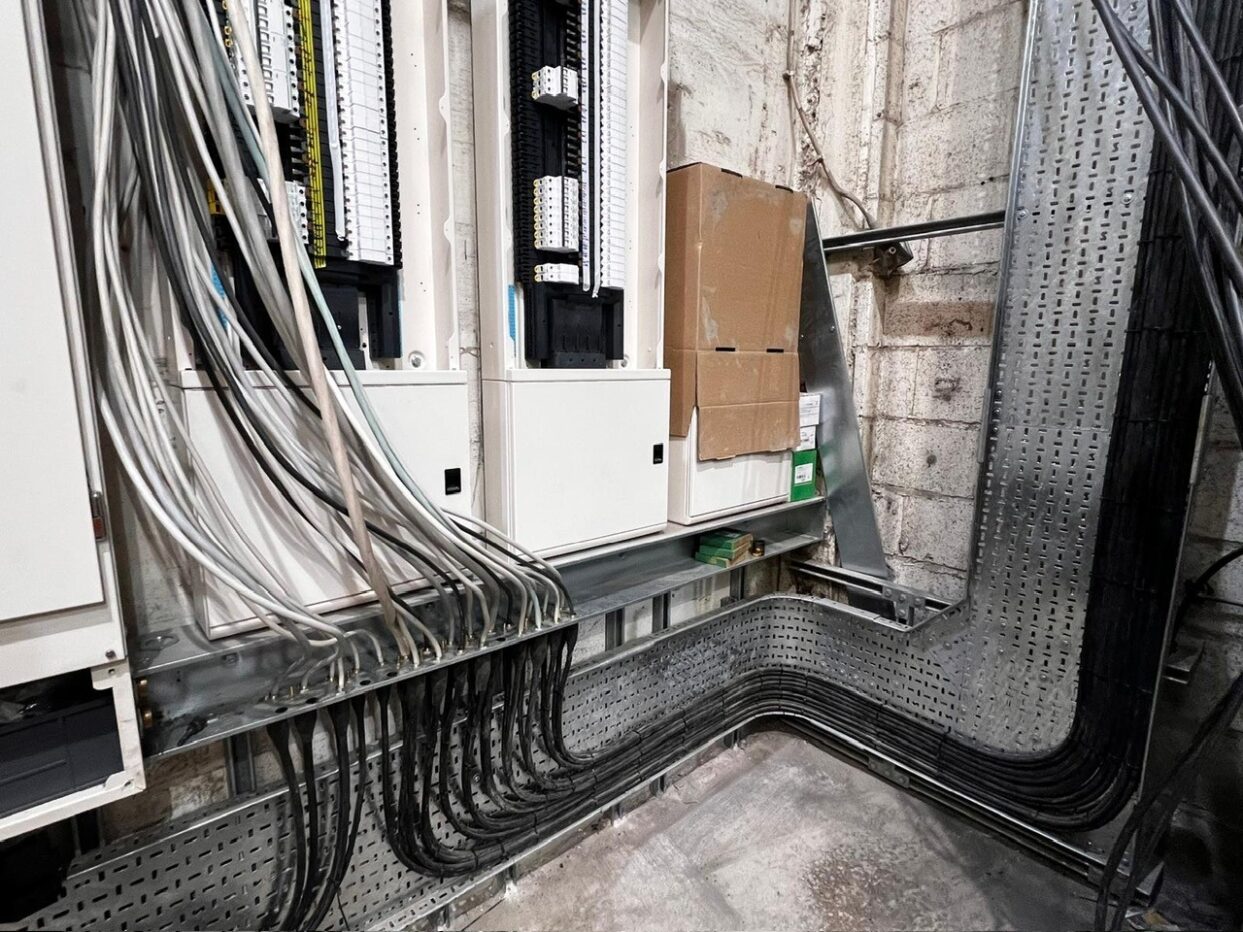

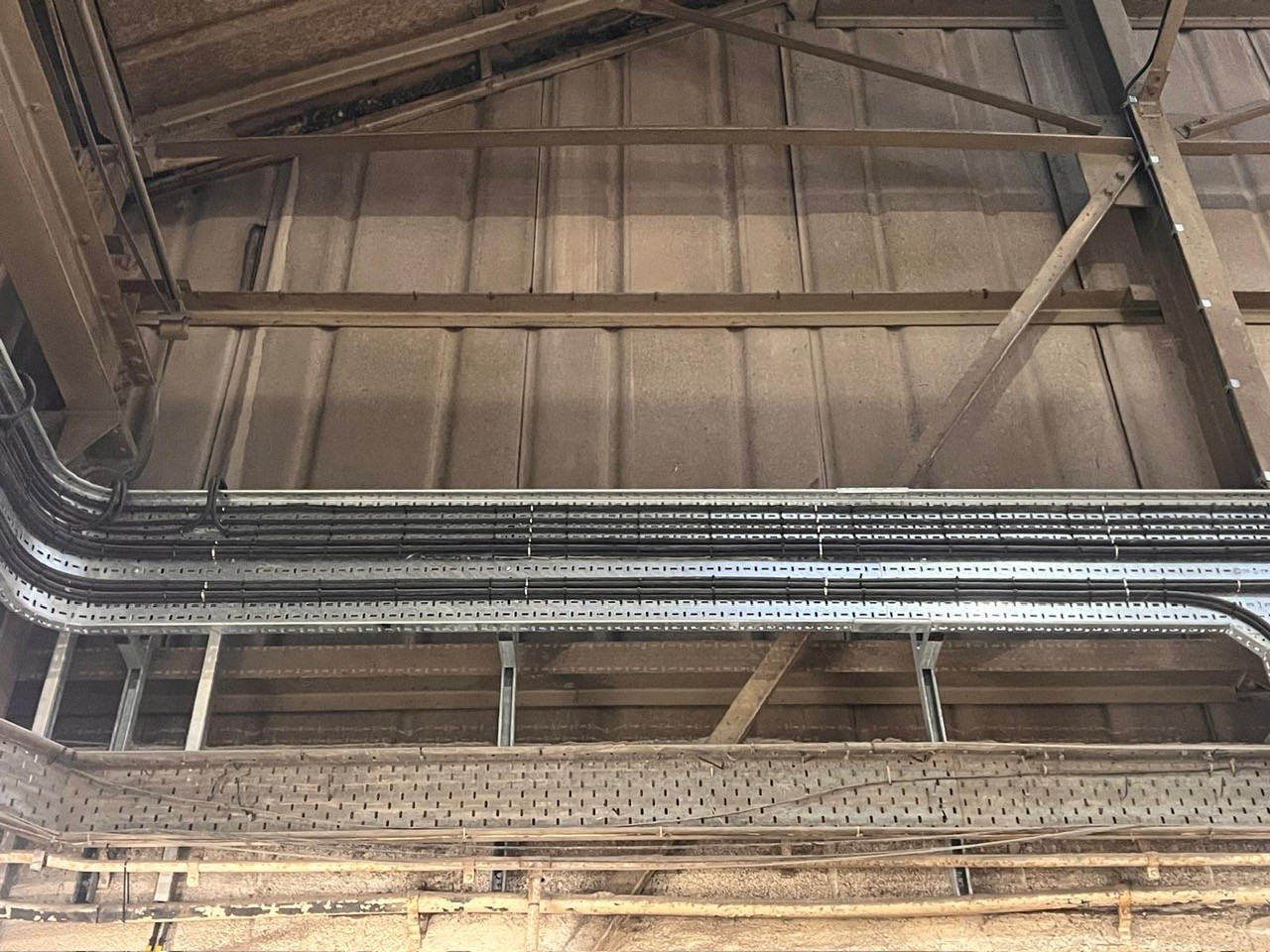

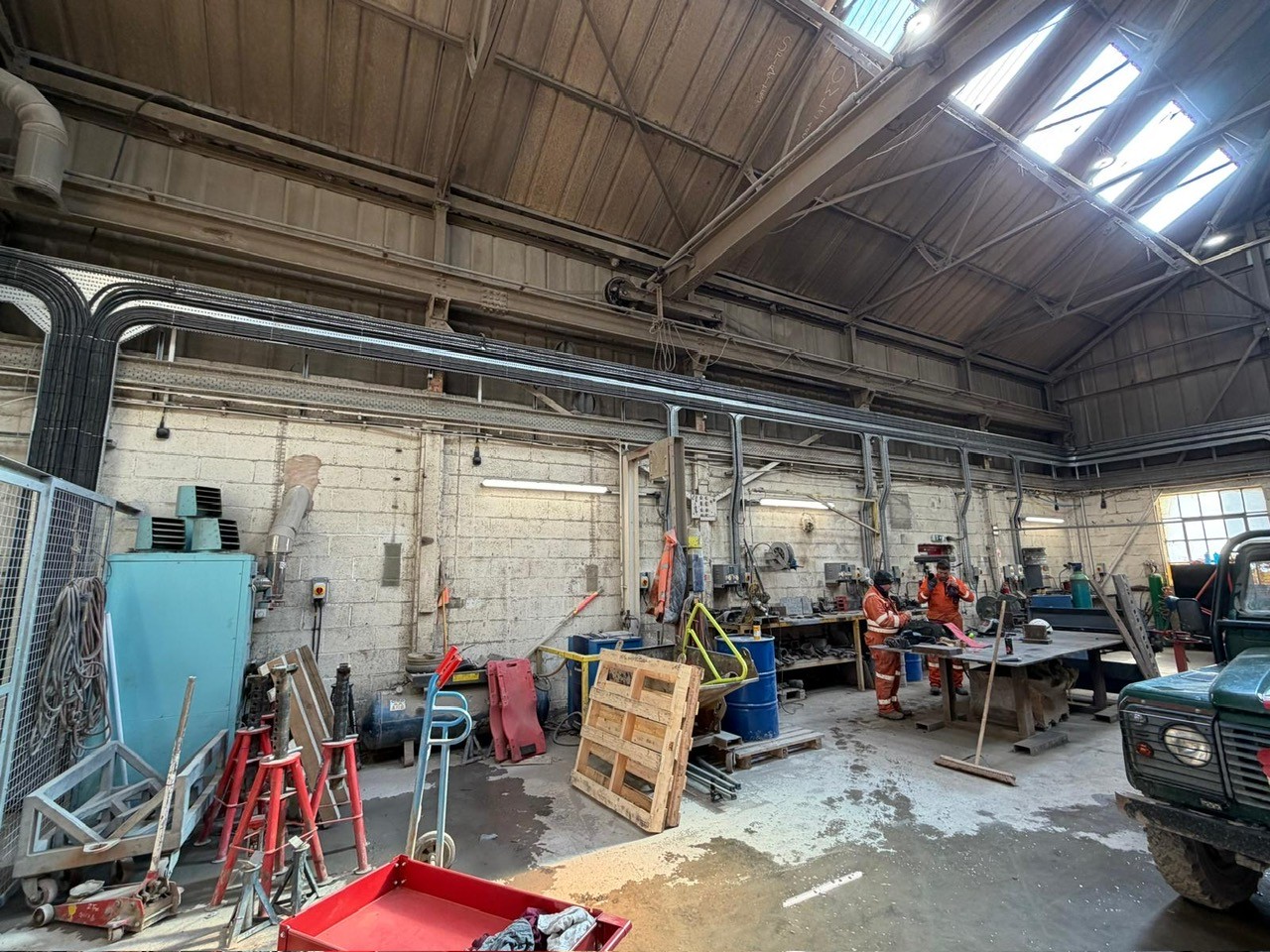

- Installation of 600mm cable tray throughout the main workshop, 300mm tray in the mechanics workshop, and 150mm tray drops to isolators, transformers, 415V sockets, and light switches

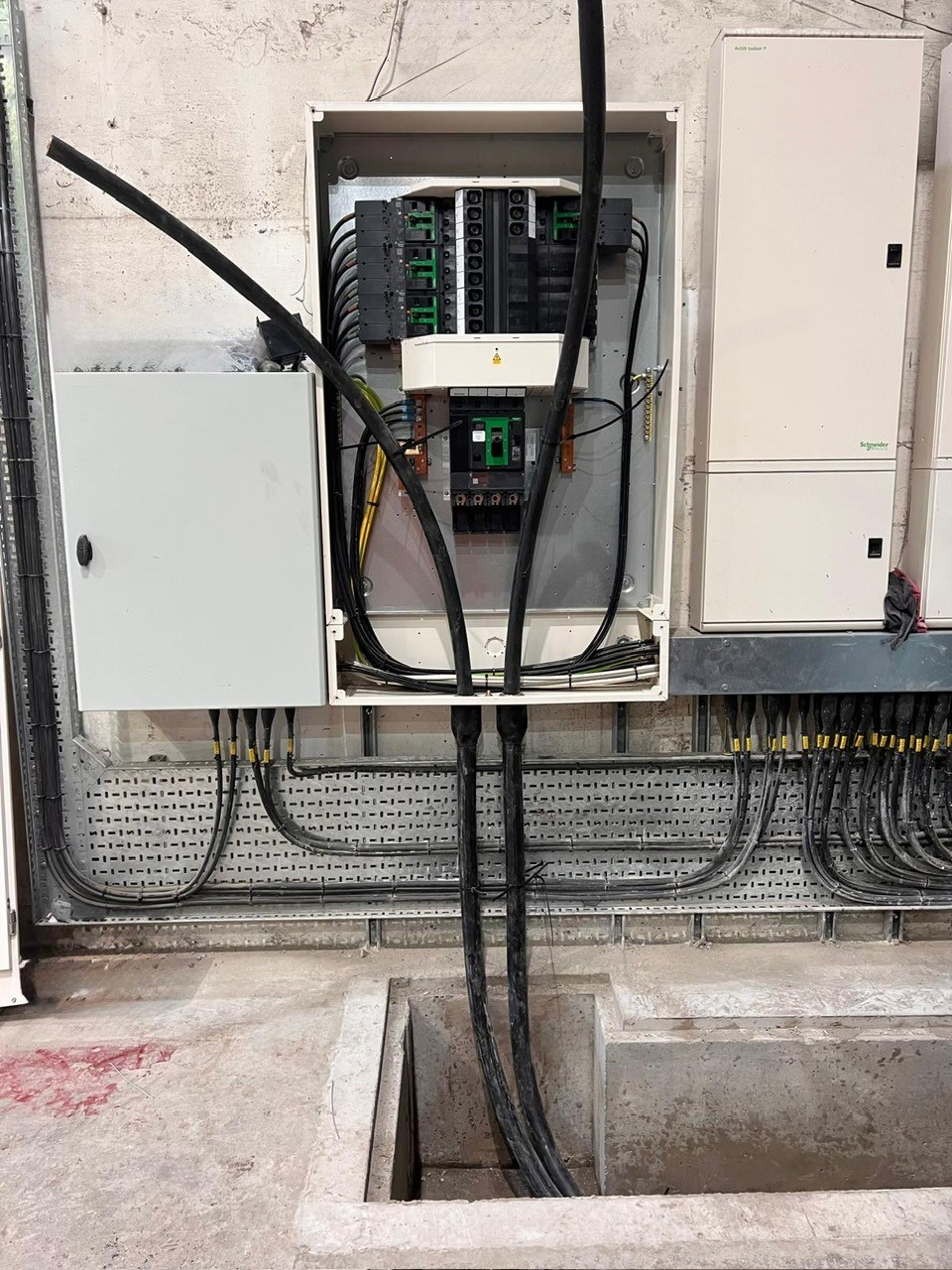

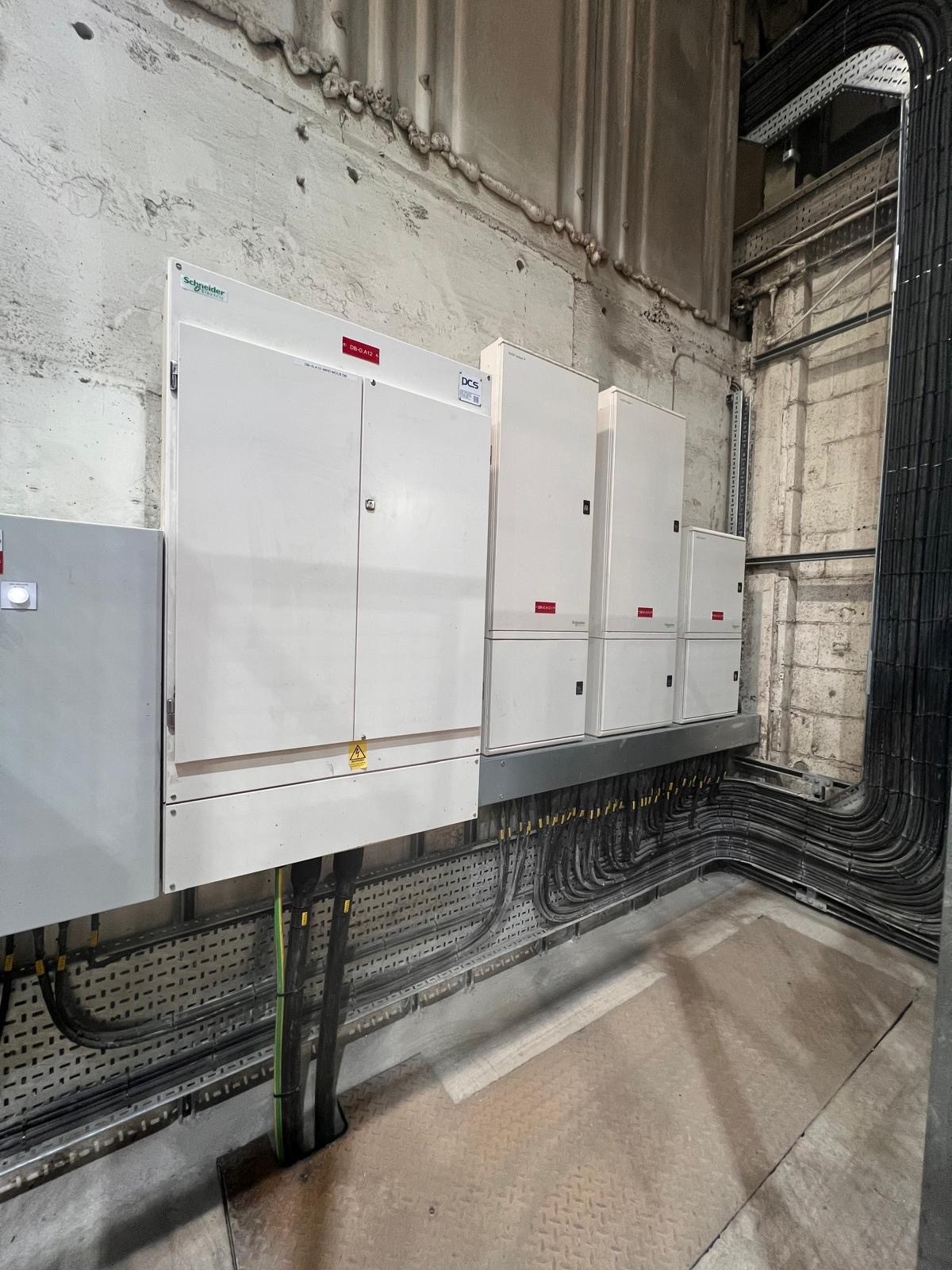

- Mounting of the Schneider 630A PowerPact board, two Schneider 250A 24-way Acti9 boards, one 250A 8-way Acti9 board, and a bespoke lighting control panel fabricated on site

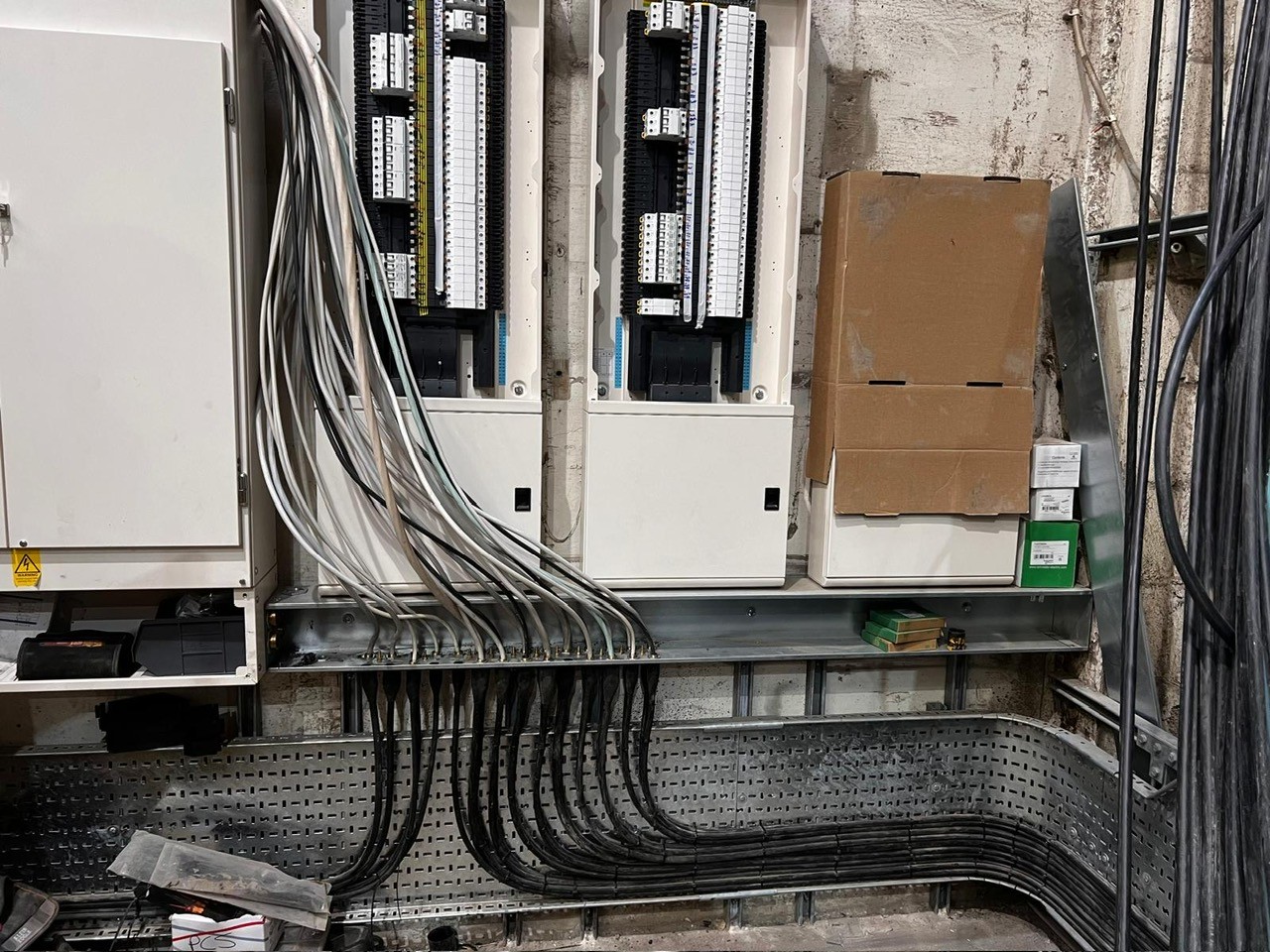

- Full cable pulls throughout the installation, all final terminations completed, and connection of the parallel 150mm 4-core supply cable with a 120mm separate earth from the onsite substation
- Full Electrical Installation Condition (EIC) report carried out across the entire installation. All relevant documentation completed and formally handed over to the client
